switchboard::SwitchboardObject Class Reference

SwitchboardObject interface. More...

#include <SwitchboardObject.hpp>

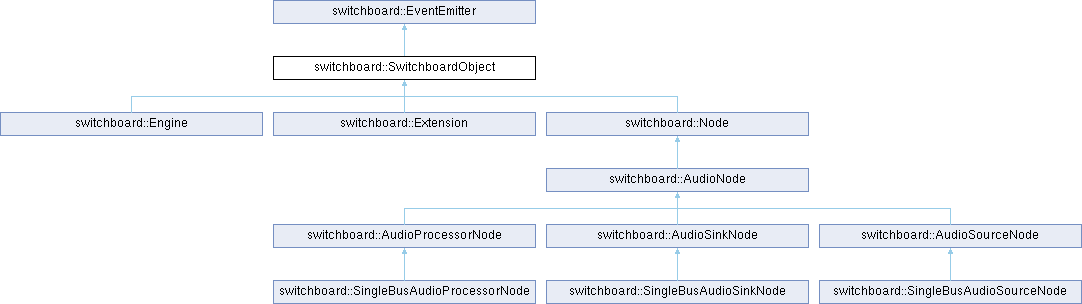

Inheritance diagram for switchboard::SwitchboardObject:

Public Member Functions
	SwitchboardObject (const std::string &objectType)
	SwitchboardObject constructor.
	~SwitchboardObject () override
	SwitchboardObject destructor.
std::string	getObjectID () const
	Gets the ID of the object.
void	setObjectID (const std::string &objectID)
	Sets the ID of the object.
std::string	getURI ()
	Gets the URI of the object.
std::string	getObjectType () const
	Gets the type of the object.
std::optional< std::string >	getObjectSubtype () const
	Gets the subtype of the object.
void	setObjectSubtype (std::optional< std::string > subtype)
	Sets the subtype of the object.
SwitchboardObject *	getParentObject () const
	Gets the parent object of the object.
void	setParentObject (SwitchboardObject *parentObject)
	Sets the parent object of the object.
virtual Result< void >	setValue (const std::string &key, const SBAny &value)
	Sets a value on the object.
virtual Result< SBAny >	getValue (const std::string &key)
	Gets a value from the object.
virtual Result< SBAny >	callAction (const std::string &actionName, const SBAnyMap &params)
	Calls an action on the object.
void	registerConfiguration (const std::string &key, const SBAnyMap &schema, const SBAny &value)
	Registers a configuration for the object using a static schema and an instance value.
void	setConfigurationValue (const std::string &key, const SBAny &value)
	Sets a configuration value for the object.
void	registerProperty (const std::string &key, const SBAnyMap &schema, const SBAny &getter=SBAny(), const SBAny &setter=SBAny())
	Registers a property for the object.
void	registerAction (const std::string &key, const SBAnyMap &schema, ActionHandler handler={})
	Registers an action for the object.
void	registerEvent (const std::string &eventName, const SBAnyMap &eventInfo)
	Registers an event for the object.
Public Member Functions inherited from switchboard::EventEmitter
	EventEmitter ()
	Constructor for the EventEmitter class.
virtual	~EventEmitter ()
	Destructor for the EventEmitter class.
unsigned int	addEventListener (const std::string &eventName, Callback callback)
	Adds a new event listener to the object.
bool	removeEventListener (unsigned int listenerID)
	Removes an event listener from the object.

Additional Inherited Members
Public Types inherited from switchboard::EventEmitter
using	Callback = std::function<void(const std::string&, const SBAny&)>
Protected Member Functions inherited from switchboard::EventEmitter
void	emitEvent (const std::string &eventName, const SBAny &data)
	Emits an event.

Detailed Description

SwitchboardObject interface.

Constructor & Destructor Documentation

SwitchboardObject()

switchboard::SwitchboardObject::SwitchboardObject ( const std::string & objectType )

explicit

SwitchboardObject constructor.

Parameters

objectType

The type of the object.

Member Function Documentation

callAction()

virtual Result< SBAny > switchboard::SwitchboardObject::callAction ( const std::string & actionName, const SBAnyMap & params )

virtual

Calls an action on the object.

Parameters

actionName	The name of the action.
params	The parameters of the action.

Returns

The result of the action.

Reimplemented in switchboard::Node.

getObjectID()

std::string switchboard::SwitchboardObject::getObjectID

(

)

const

Gets the ID of the object.

Returns

The ID of the object.

getObjectSubtype()

std::optional< std::string > switchboard::SwitchboardObject::getObjectSubtype

(

)

const

Gets the subtype of the object.

Returns

The subtype of the object, or nullopt if not set.

getObjectType()

std::string switchboard::SwitchboardObject::getObjectType

(

)

const

Gets the type of the object.

Returns

The type of the object.

getParentObject()

SwitchboardObject * switchboard::SwitchboardObject::getParentObject

(

)

const

Gets the parent object of the object.

Returns

The parent object of the object.

getURI()

std::string switchboard::SwitchboardObject::getURI

(

)

Gets the URI of the object.

Returns

The URI of the object.

getValue()

virtual Result< SBAny > switchboard::SwitchboardObject::getValue ( const std::string & key )

virtual

Gets a value from the object.

Parameters

key	The key of the value.

Returns

The value.

Reimplemented in switchboard::Node.

registerAction()

void switchboard::SwitchboardObject::registerAction	(	const std::string &	key,
		const SBAnyMap &	schema,
		ActionHandler	handler = {} )

Registers an action for the object.

Copies schema and attaches handler as the ACTION_FIELD_HANDLER entry if non-empty. Intended for use with NodeTypeInfo::getAction() so the schema lives once per type and only the handler is supplied per instance.

Parameters

key	The key of the action.
schema	The static schema for the action (typically from NodeTypeInfo).
handler	The instance-bound callable that implements the action. May be empty for schema-only registrations dispatched via callAction() override.

registerConfiguration()

void switchboard::SwitchboardObject::registerConfiguration	(	const std::string &	key,
		const SBAnyMap &	schema,
		const SBAny &	value )

Registers a configuration for the object using a static schema and an instance value.

Copies schema and attaches value as the CONFIGURATION_FIELD_VALUE entry. Intended for use with NodeTypeInfo::getConfiguration() so the schema lives once per type and only the live value is supplied per instance.

Parameters

key	The key of the configuration.
schema	The static schema for the configuration (typically from NodeTypeInfo).
value	The current/initial value for this instance.

registerEvent()

void switchboard::SwitchboardObject::registerEvent	(	const std::string &	eventName,
		const SBAnyMap &	eventInfo )

Registers an event for the object.

Parameters

eventName	The name of the event.
eventInfo	The information about the event.

registerProperty()

void switchboard::SwitchboardObject::registerProperty	(	const std::string &	key,
		const SBAnyMap &	schema,
		const SBAny &	getter = SBAny(),
		const SBAny &	setter = SBAny() )

Registers a property for the object.

Copies schema and attaches getter / setter as the PROPERTY_FIELD_GETTER / PROPERTY_FIELD_SETTER entries if non-empty. Intended for use with NodeTypeInfo::getProperty() so the schema lives once per type and only the callbacks are supplied per instance.

Parameters

key	The key of the property.
schema	The static schema for the property (typically from NodeTypeInfo).
getter	The instance-bound getter callable. May be empty for value-backed properties. Accepted forms: std::function<SBAny()> or std::function<Result<SBAny>()>.
setter	The instance-bound setter callable. May be empty for read-only properties. Accepted forms: std::function<void(const SBAny&)> or std::function<Result<void>(const SBAny&)>.

setConfigurationValue()

void switchboard::SwitchboardObject::setConfigurationValue	(	const std::string &	key,
		const SBAny &	value )

Sets a configuration value for the object.

Parameters

key	The key of the configuration.
value	The value to set.

setObjectID()

void switchboard::SwitchboardObject::setObjectID

(

const std::string &

objectID

)

Sets the ID of the object.

Parameters

objectID

The ID to set.

setObjectSubtype()

void switchboard::SwitchboardObject::setObjectSubtype

(

std::optional< std::string >

subtype

)

Sets the subtype of the object.

Parameters

subtype

The subtype to set.

setParentObject()

void switchboard::SwitchboardObject::setParentObject

(

SwitchboardObject *

parentObject

)

Sets the parent object of the object.

Parameters

parentObject

The parent object to set.

setValue()

virtual Result< void > switchboard::SwitchboardObject::setValue ( const std::string & key, const SBAny & value )

virtual

Sets a value on the object.

Parameters

key	The key of the value.
value	The value to set.

Returns

A successful result if the value was set successfully, an error result otherwise.

---

The documentation for this class was generated from the following file:

• SwitchboardObject.hpp
